Fieldpiece ADK7 Deluxe Silicone Test Lead Kit

Fieldpiece ADK7 — a professional deluxe silicone test lead kit designed for everyday HVAC/R technician work. This complete package delivers precise electrical measurements in hard-to-reach locations, with maximum flexibility and resistance to extreme conditions.

Applications

• Safe voltage, resistance, and other electrical measurements on air conditioning, refrigeration, and heat pump equipment.
• Use with Fieldpiece stick-type meters as well as standard digital multimeters and clamp meters.
• Component testing in extreme low or high temperatures where standard vinyl leads stiffen and crack.
• Safe hands-free measurements using the alligator clip extensions.

Key features

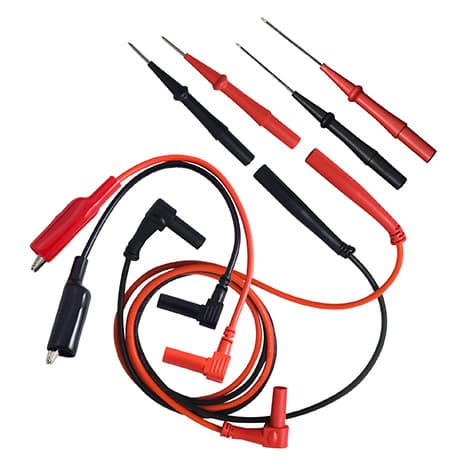

• Complete Deluxe kit — includes ADLS2 silicone test leads, ASA2 alligator clip extensions, and RCT2 hard probe tips, adaptable to any measurement task.
• Premium silicone insulation — silicone leads are far more flexible than conventional vinyl leads. They do not harden, do not crack, and retain full pliability even in extreme cold (insulation rated to 150°C / 302°F).
• Safety and convenience — right-angle 4 mm banana plugs (industry standard) ensure a secure connection to the meter; high-flexibility strain relief boots protect leads against damage at the tip under intensive daily use.
• Removable tip guards — allow safe adjustment of the exposed probe length to suit different measurement conditions and safety categories (CAT III 1000V / CAT IV 600V with guards fitted).
• One-hand operation — the red lead plugs directly into the top port of Fieldpiece stick meters for convenient single-handed use in the field.

Technical data Parameter Value Model Fieldpiece ADK7 Product type Deluxe silicone test lead kit Lead length 3 ft (approx. 0.9 m) Insulation material Silicone (highly flexible) Safety rating CAT III 1000V / CAT IV 600V (with guards fitted) Compatibility Multimeters, clamp meters, and stick meters with standard 4 mm banana jacks Max operating temp. 150°C (302°F) Set contents

• 1 × pair Fieldpiece ADLS2 silicone test leads with removable tip guards
• 1 × pair Fieldpiece ASA2 alligator clip extensions
• 1 × pair Fieldpiece RCT2 hard probe tips
