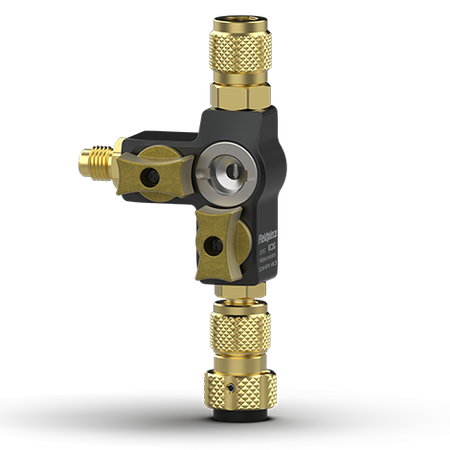

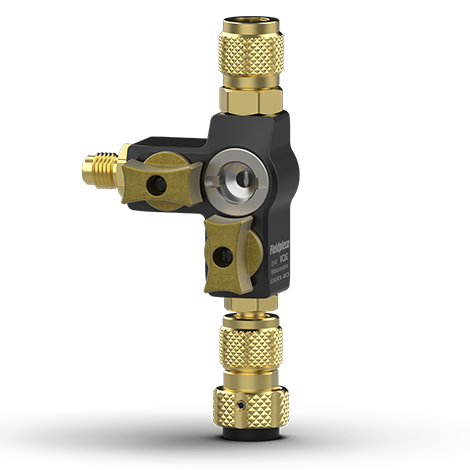

VC2G is a tool for removing and installing service valve cores in HVAC/R systems. The sight glass helps confirm core engagement and refrigerant flow, while dual ball valves provide independent port isolation during service. What it's used for Removing and...
VC2G is a tool for removing and installing service valve cores in HVAC/R systems. The sight glass helps confirm core engagement and refrigerant flow, while dual ball valves provide independent port isolation during service. What it's used for Removing and installing service valve cores in HVAC/R installations Visual confirmation of core engagement through the built-in sight glass Observing refrigerant flow during system handling Protecting a micron gauge or manifold gauges connected to the side port Evacuation, recovery, and system handling where removing the core improves flow Servicing air conditioners, heat pumps, and refrigeration equipment with 1/4″ ports and 5/16″ mini-split ports when the appropriate fitting is used Key features Built-in sight glass — allows visual confirmation of valve core engagement and refrigerant flow Dual ball valves — enable independent isolation of the main port and side port Side service port — helps protect a micron gauge or manifold gauges connected to the tool Valve core gripper with seal — holds the core securely during removal and installation Comfort spinner handle — makes turning the spindle easier when working under system pressure 1/4″ connection — fits standard HVAC/R service ports 5/16″ option — allows mini-split work when the appropriate fitting is fitted Deep vacuum rated — rated to 20 microns per Fieldpiece data A2L compatibility — tool is rated for modern A2L refrigerant service applications Selected specifications Type Valve core removal tool / VCRT with sight glass and dual ball valves Model Fieldpiece VC2G Standard service connection Female 1/4″ Optional / replaceable fitting 5/16″ for mini-splits Side port Male 1/4″ with removable valve core Vacuum rating 20 microns / 0.027 mbar / 0.020 Torr Maximum working pressure 800 psi / 55 bar Dimensions 5.06″ × 2.63″ × 1.5″ Weight 0.82 lb / 372 g Refrigerant compatibility A2L per Fieldpiece data In the box Fieldpiece VC2G valve core removal tool with sight glass and dual ball valves Integrated 1/4″ service connection 5/16″ mini-split fitting if included in the product configuration Manufacturer documentation
